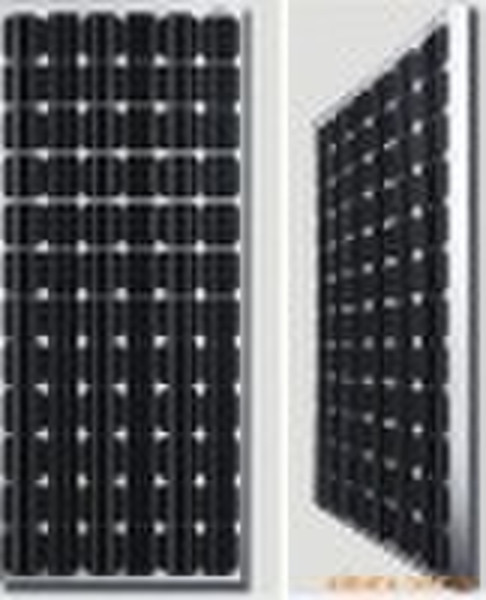

150W Solar Panel,Solar Module

150W Solar Panel,Solar Module

Taiyuan, China
Production capacity:
10000 Piece / Month
Taiyuan, China
Company
86-354-3987736
Jacky Wang
Contact person

Basic Information

Place of Origin Shanxi China (Mainland)
Brand Name YaoYu Solar
Model Number YY-150Wp/72
Size 1580mm*808mm*35/42mm
Number of Cells 72pcs
Max. Power 150W
Material Monocrystalline Silicon
Description for 150w monosolar power panelParameters of polycrystalline silicon solar cell panels ModelUnitModel150WBasic ParametersRated powerW150WStorage and operating temperature Deg C -40°C to +80°C Testing standards1000W/M²,1.5AM,25°CDimensions (L * W * H)mm1580*808*35Weightkg16kgCell parametersCell TypeMonocrystallineAreamm2125*125Number of cells (series)72(6*12)Maximum powerW150Output power tolerance%+/-3Voltage and current parametersMaximum system voltageVolts1000Optimum power voltage (Vmp)Volts36Optimum power current (Imp)Amps4.17Open circuit voltage(Voc)Volts42.48Short circuit current (Isc)Amps4.58 Temperature coefficientAuxiliary material parameters (passed by CE and TUV certification)junction boxProtection classIP65LengthM0.9Diametermm20.4FrameAluminum alloy, anodizedGlassThicknessmm3.2Low iron, high transmittance, steelYESEVA gluemm0.5Rear panel(TPT)mm0.3Warranty10 years%9020 - 25 years%80Warranty periodYear1BitmapFeatures and advantagesAttractive appearance, high conversion efficiencyExcellent low-light effectHigh-transmittancehigh-quality toughened glassUnique and advanced technology makes the component performanceexcellentSolid and beautiful framework is anti-snowAdvanced packaging technology can prevent water seepage and deformationDesigned according to customer demands

Delivery terms and packaging

Packaging Detail: packed by carton box or wooden case Delivery Detail: 10 15days
Port: Tianjin / Shanghai

Payment term

Letter of credit

Telegraphic transfer

Western Union
